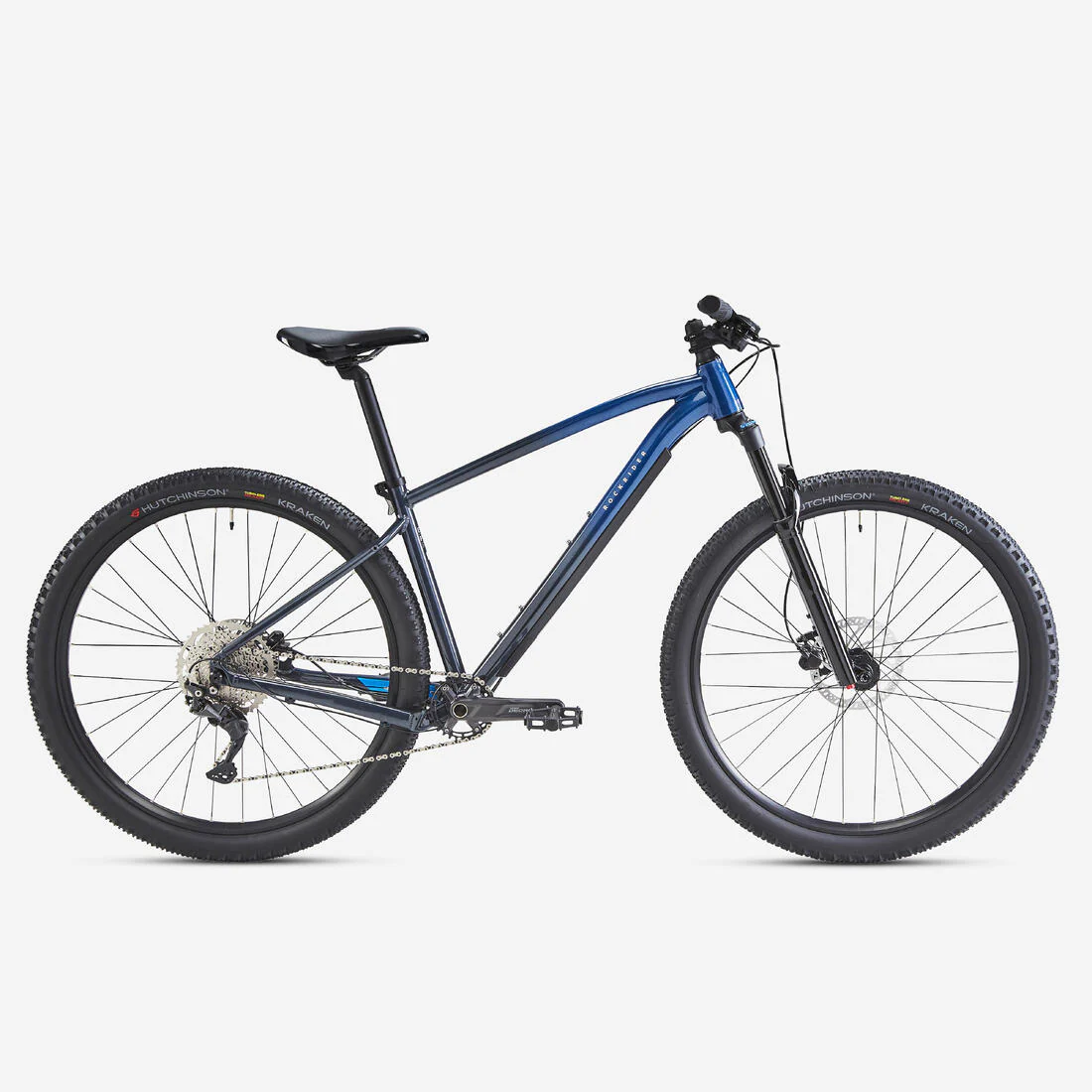

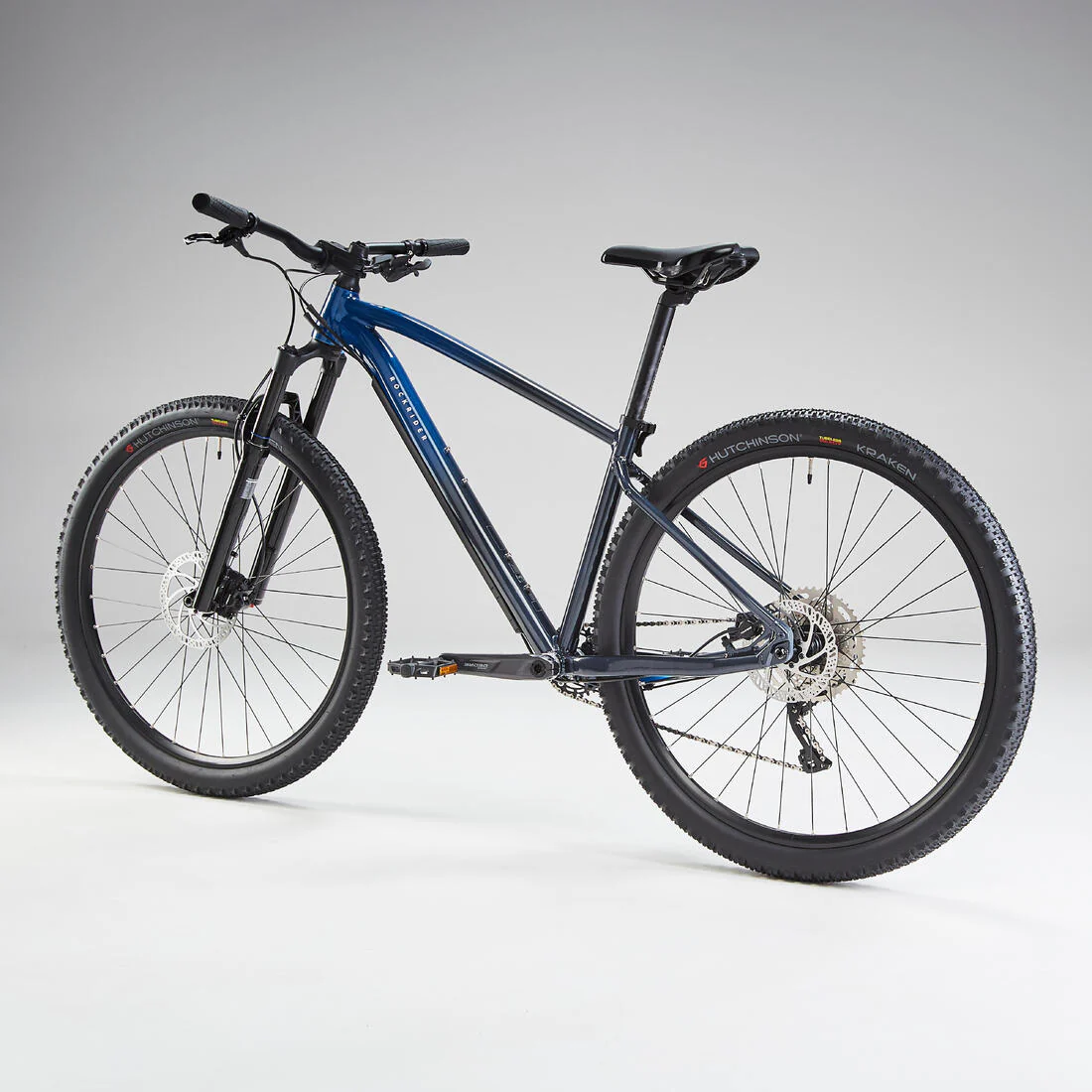

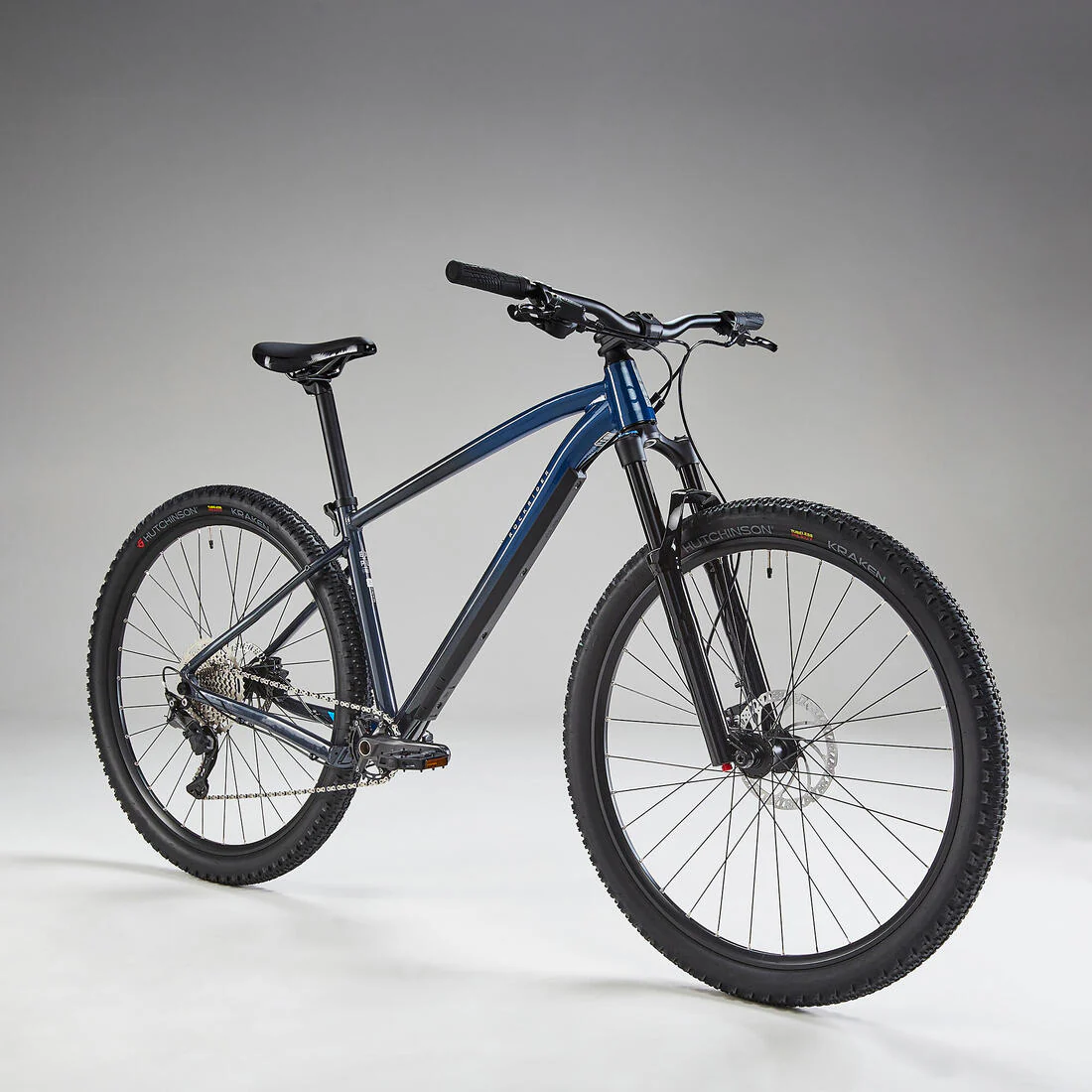

29" Touring Mountain Bike Explore 540 - Blue/Black

Designed for regular bike touring.

In a nutshell

Weight: 12.8 kg in size M (without pedals) Frame material: Aluminium Type: Hardtail Wheel size: 29" (M / L / XL), 27.5" (S) Fork travel: 120 mm Drivetrain: 1x10 Brakes: Hydraulic Seatpost: Aluminium Frame, stem and handlebar warranty: lifetime

Weight

S: 12.6 kg M: 12.8 kg L: 12.85 kg XL: 12.95 kg Net weight without pedals

FRAME

Composition: 6061 butted aluminium 148 mm x 12 mm Boost rear axle Bolt through axle 73 mm threaded bottom bracket (BSA) Protective cover for dropper seat post cable and housing 31.6 mm seat tube Tapered head tube 2 bottle cage mounts (1 on size S) / Pannier rack mounts

DRIVETRAIN

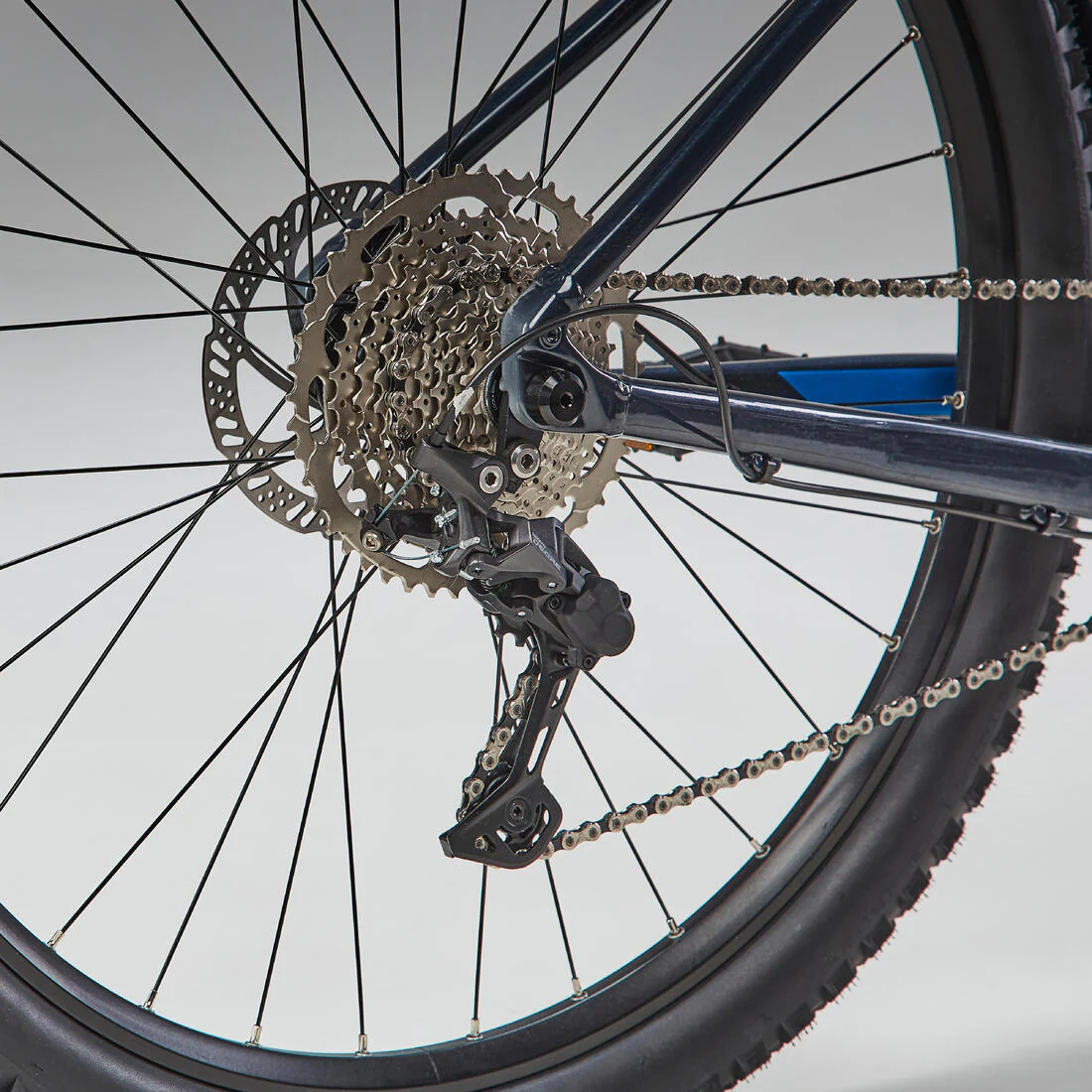

Shimano CUES 30 T single chainring (compatible with 32 T) 175 mm crank "Thru axle / external bearing" bottom bracket 10-speed shifter and rear derailleur 11-46 cassette KMC X10 chain

Suspension

Suntour RC32 X-Fusion fork AIR fork 120 mm travel Stanchion diameter: 32 mm 6-sided through-axle bolt 15 x 110 mm Boost format Turnkey lockout on the fork

Wheels

29" (M / L / XL), 27.5" (S) Tubeless ready rims, Presta valve 23 mm inner width (28 mm outer) 32 spokes Thru axle / Boost format hub 6-bolt disc Shimano/Sram freehub Sealed bearings

BRAKES

Hydraulic disc brakes Tektro TK-M276 Number of pistons: 2 Front disc: 180 mm Rear disc: 160 mm Adjustable reach: Yes

Riding position

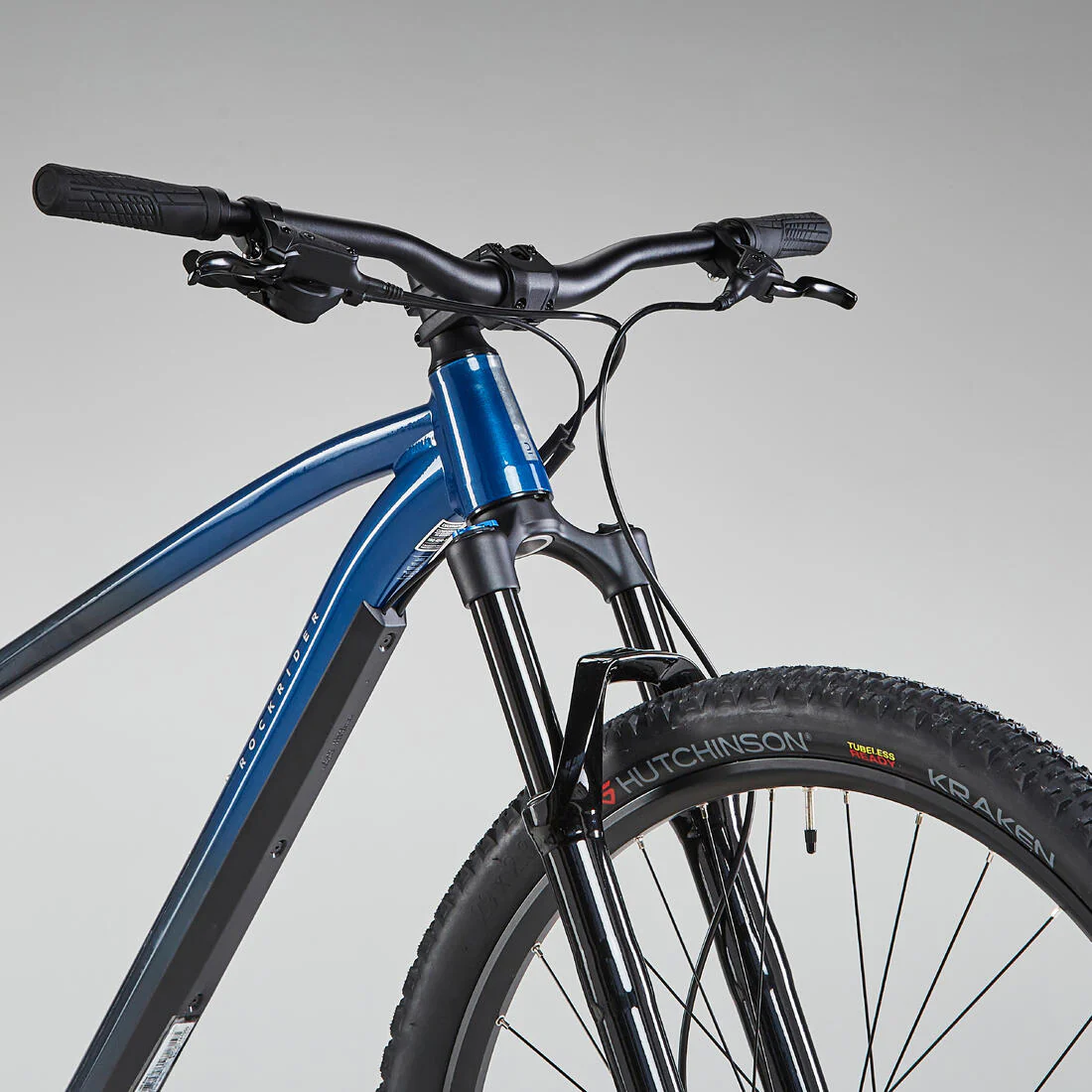

Handlebar: Rockrider Sport Material: Aluminium Width: 740 mm (M / L / XL), 700 mm (S) Stem: Rockrider Material: aluminium Size: 60 mm 4 adjustment increments: +0 mm, +5 mm, +20 mm, +25 mm Compatible with Garmin, Mio or Bryton bike computer / GPS brackets Grips: Rockrider Ergonomic

Saddle and seat post

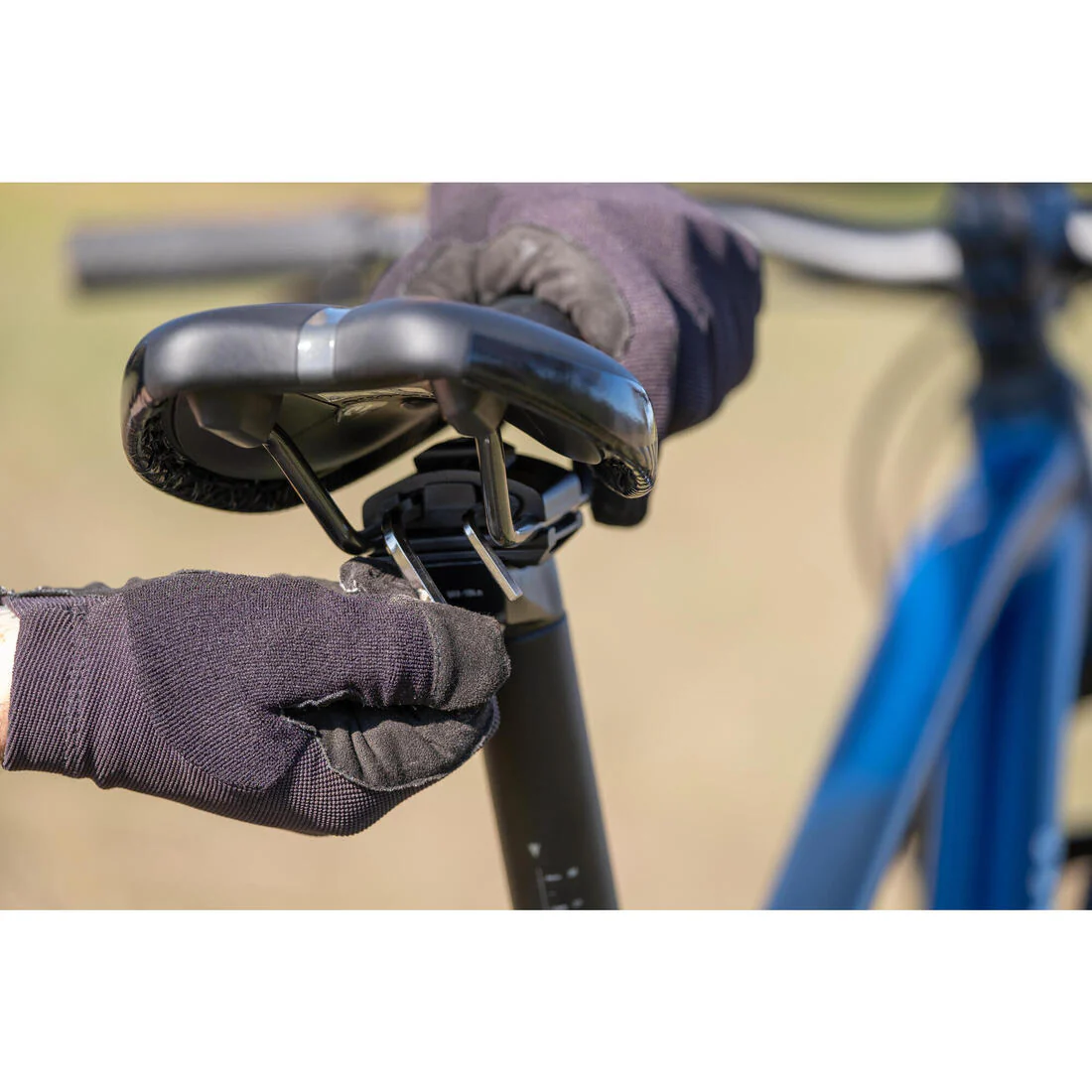

Rockrider Ergofit PRO saddle Rockrider Sport seat post Material: Aluminium Diameter: 31.6 mm Length: 400 mm (S / M / L), 450 mm (XL) With tool holder (4 mm and 6 mm Allen keys included) Compatible with dropper posts

Tyre

Hutchinson Kraken 29"x2.3" (M / L / XL), 27.5"x2.3" (S) Carcass: 60 TPI Tubeless ready

PEDALS

Rockrider 520 Grip resin flat pedals.

ACCESSORIES INCLUDED

Your mountain bike comes with a bell, lighting, wheel reflectors, and pedals.

The Shimano 10-speed single chainring provides endurance and flexibility.The Boost format makes the wheels more rigid, so they are more efficient and precise.

Designed for regular bike touring.
