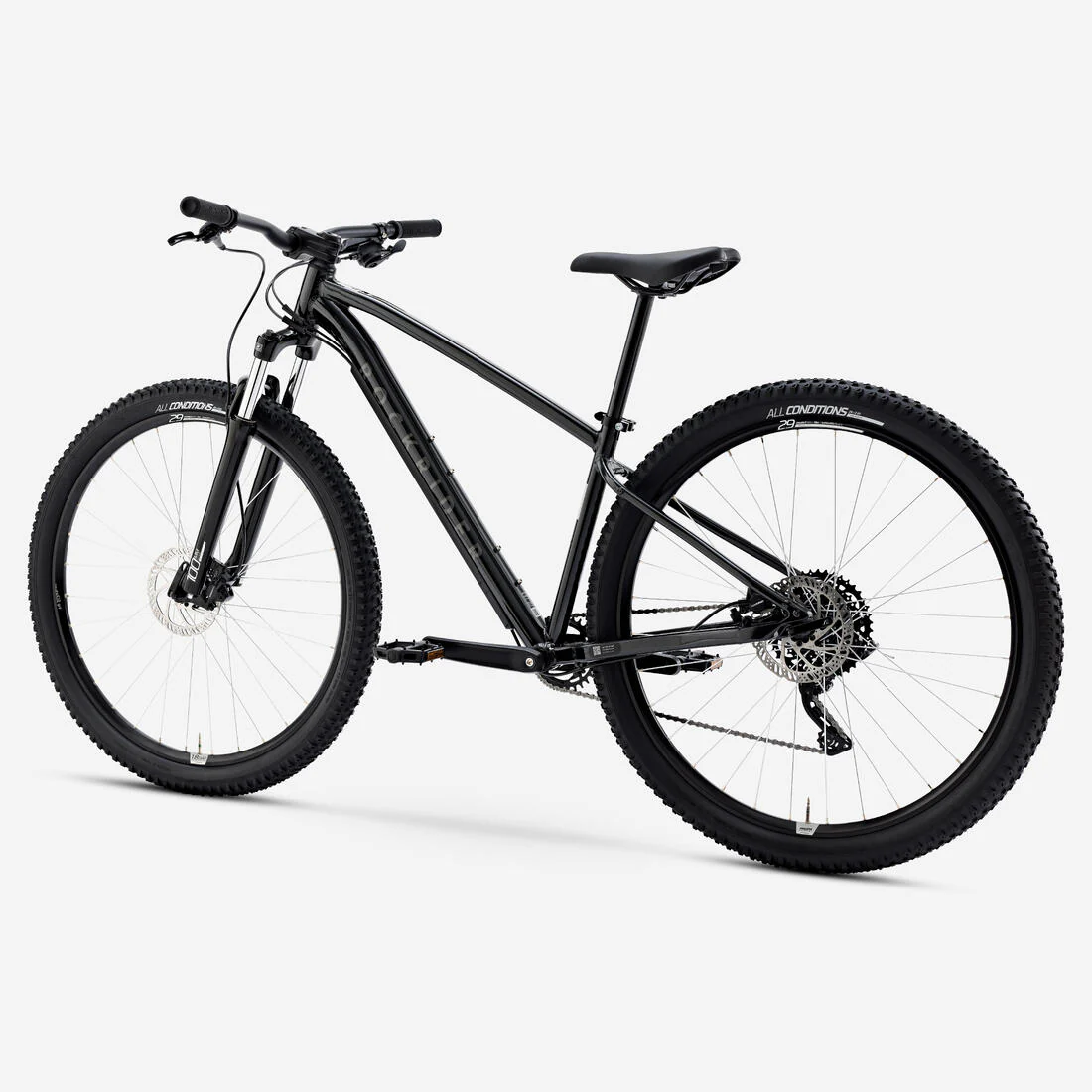

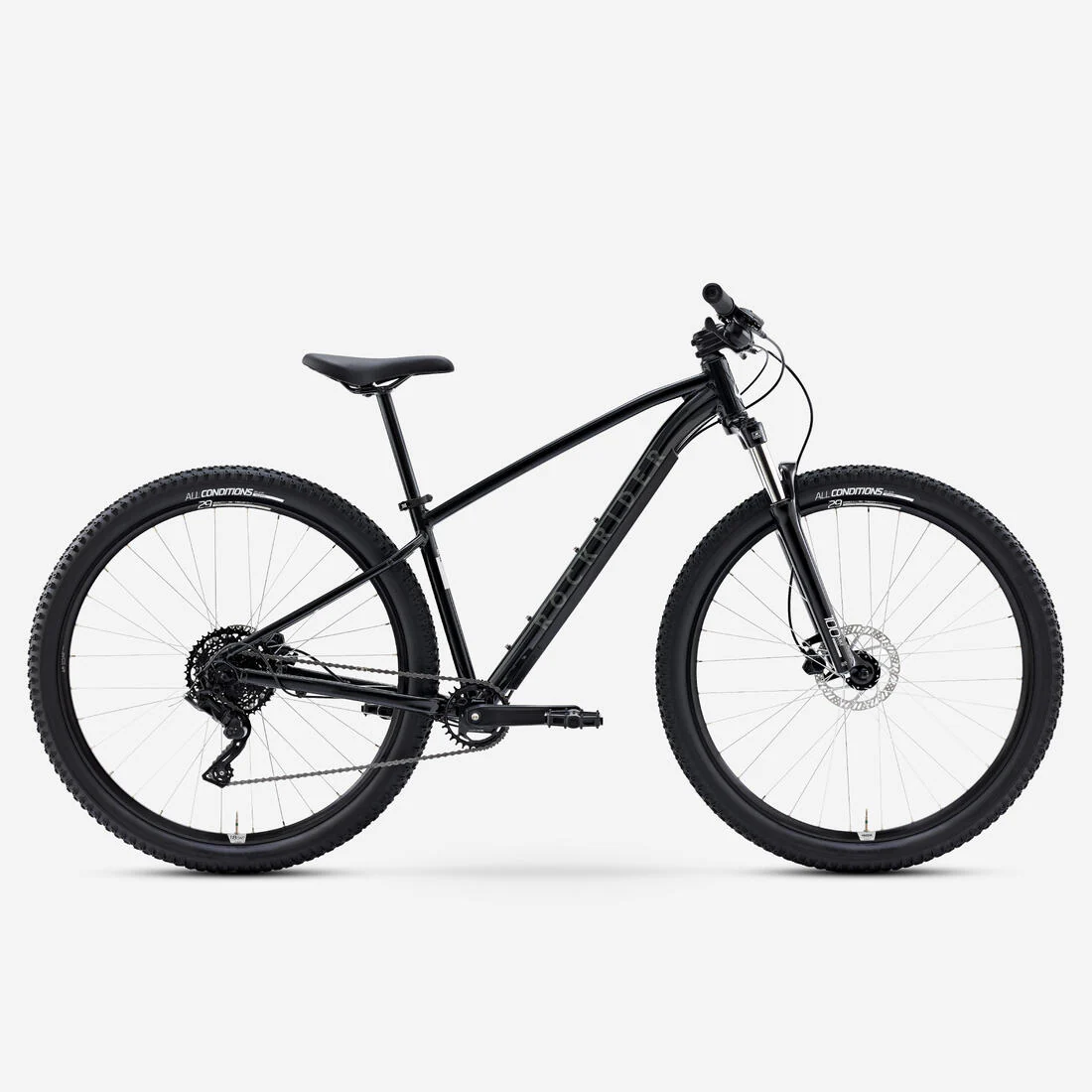

29" Touring Mountain Bike Expl 500

Designed for mountain bike rides all year round, from 2 to 3 hours long.

In a nutshell

Weight: 14.85 kg in size M (without pedals) Frame material: Aluminium Type: Hardtail Wheel size: 29" (M / L / XL), 27.5" (S) Fork travel: 100 mm Drivetrain: 1x9 Brakes: Hydraulic Seatpost: Steel Frame, stem and handlebar warranty: lifetime

Weight

S: 14.5 kg M: 14.85 kg L: 14.95 kg XL: 15.05 kg Net weight without pedals

Frame

Composition: 6061 aluminium 135 mm x 9 mm rear axle QR spindle 73 mm threaded bottom bracket (BSA) Protective cover for housing 27.2 mm seat tube Straight head tube 2 bottle cage mounts (1 on size S) / Pannier rack mounts

Drivetrain

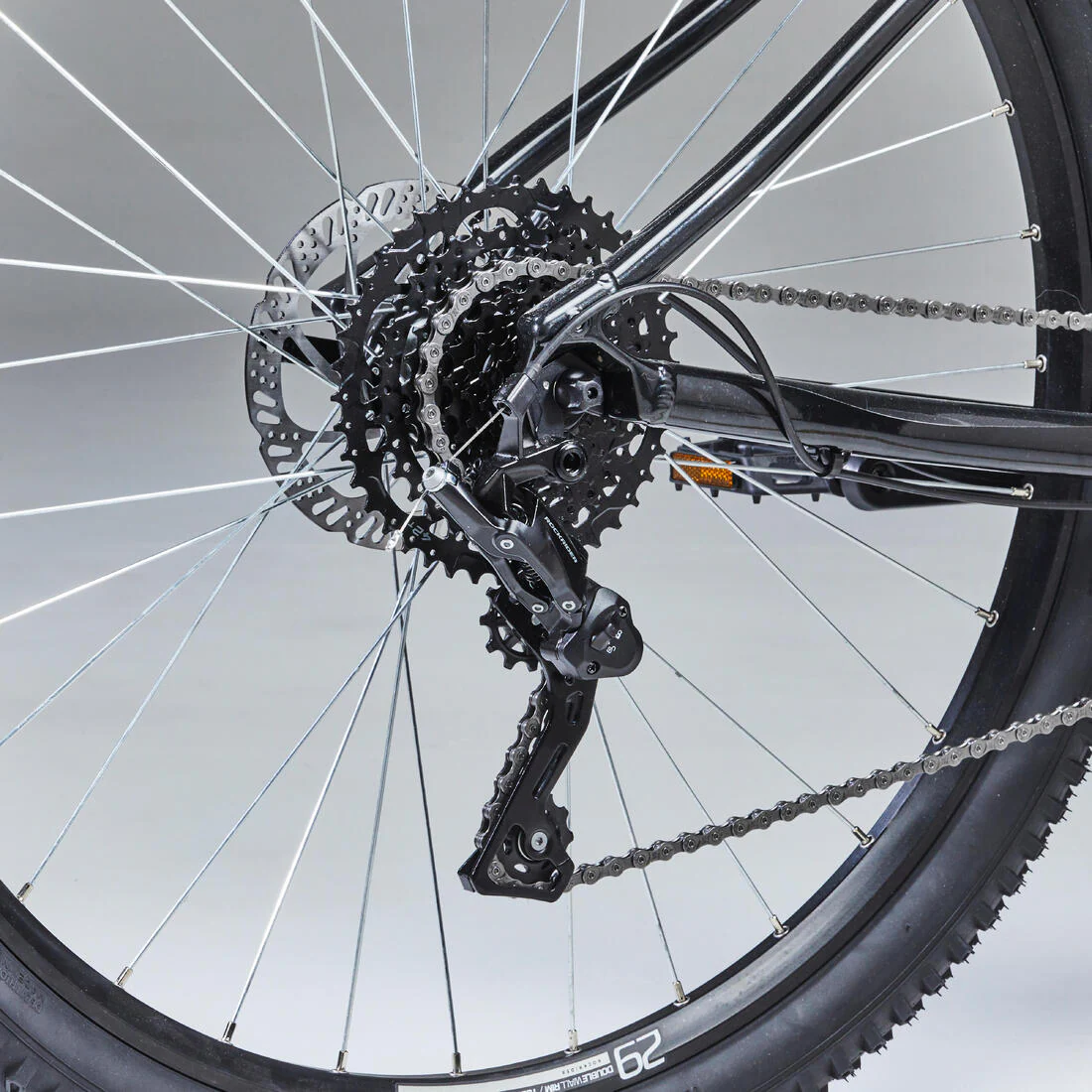

30 T single chainring (compatible with 32 T) 175 mm crank "Square taper" bottom bracket Microshift Advent 9-speed shifter and rear derailleur 11-42 cassette KMC Z9 chain

Suspension

Suntour XCM fork Coil spring 100 mm travel Stanchion diameter: 30 mm QR axle 9 x 100 mm

Wheels

29" (M / L / XL), 27.5" (S) Tubeless ready rims, Presta valve 23 mm inner width (28 mm outer) 32 spokes (M / L / XL), 28 spokes (S) 6-bolt disc Shimano/Sram freehub

Brakes

Hydraulic disc brakes Tektro TK-M276 Number of pistons: 2 Front disc: 160 mm Rear disc: 160 mm Adjustable reach: Yes

Riding position

Handlebar: Rockrider Sport Material: Aluminium Width: 740 mm (M / L / XL), 700 mm (S) Stem: Rockrider Material: Aluminium Size: 60 mm 4 adjustment increments: +0 mm, +5 mm, +20 mm, +25 mm Grips: Rockrider SPORT

/ Seat post

Rockrider Ergofit saddle Rockrider Sport seat post Material: Steel Diameter: 27.2 mm Length: 350 mm (S / M), 400 mm (L), 450 mm (XL)

Tyre

Rockrider All Conditions 29"x2.2" (M / L / XL), 27.5"x2.2" (S) Carcass: 60 TPI

Pedals

Rockrider 520 Grip resin flat pedals

ACCESSORIES INCLUDED

Your mountain bike comes with a bell, lighting, wheel reflectors, and pedals.

Comfortable and responsive to the terrain: the Explore 500 mountain bike's 29" wheels (27.5" in S), single chainring and hydraulic disc brakes will revolutionise your mountain bike rides!

Ease of handling

Enjoy an upright position, adjustable stem, 100mm suspension and hammock saddle.

Efficiency

Lightweight alu frame, 29" wheels (27.5" in S), 9-speed single chainring

Ease of use

Change speed with one hand, without even thinking: SINGLE CHAINRING DRIVETRAIN

Brake control

Manage your trajectory: hydraulic disc brakes, and wide tyres and handlebar.

Lifetime warranty

ROCKRIDER offers a lifetime warranty on the frame, handlebars and stem.

Designed for mountain bike rides all year round, from 2 to 3 hours long.
